Strymon DIG Plugin

The DIG plugin unearths the true soul of digital delay and doubles it — two

simultaneous, integrated delays with captivating rack delay voicings from the 1980s

and today. Instantly create intricate synchronized echo patterns, as well as hypnotic

and atmospheric repeats that blur the line between delay and reverb. Each of DIG’s

three digital delay voicings has its own distinctively inspiring personality: the early ’80s

adaptive delta modulation mode, the mid-’80s 12-bit pulse code modulation mode, and

the modern high-resolution 24/96 mode.

Sound Design

• Two simultaneous, integrated delays, with unique digital rack delay voicings

• Each of the integrated delays provides true stereo for a total of four interactive delay lines

• Adjustable Modulation, Tone, and Dry Level for control over repeats

• Adjustable Time, Level and Repeats for each Delay engine

• One modern and two classic digital delay voicings: 24/96, ADM (Adaptive Delta Modulation), and 12-bit

• Up to twelve Delay 1 subdivisions: Whole, Dotted Half, Half, Dotted Quarter, Quarter (the default), Dotted Eighth, Eighth Triplet, Eighth, Sixteenth Triplet, Sixteenth, Thirty-second Triplet, and Thirty-second note

• Delay 1 Tempo Modes for project tempo Sync or TAP modes with subdivision options or Free mode

• Delay 2 can be locked to Delay 1’s Time/Tempo with its own optional subdivisions: Dotted Quarter, Dotted Eighth, Golden Ratio, Eighth, and Eighth Triplet

• Repeats Lock switch to provide independent or locked number of repeats for Delay 1 & 2

• Selectable Free Mode for Delay 1 and Delay 2 disables subdivisions and synchronization

• Press and hold Circular Repeats effect

• Delay 1 offers a 20ms – 1.6s delay range. Delay 2 offers 7ms to 2.4s delay range (Ranges may differ depending on Sync or TAP tempo and subdivision selections)

Features

• Fully adjustable plugin Input and Output levels with metering

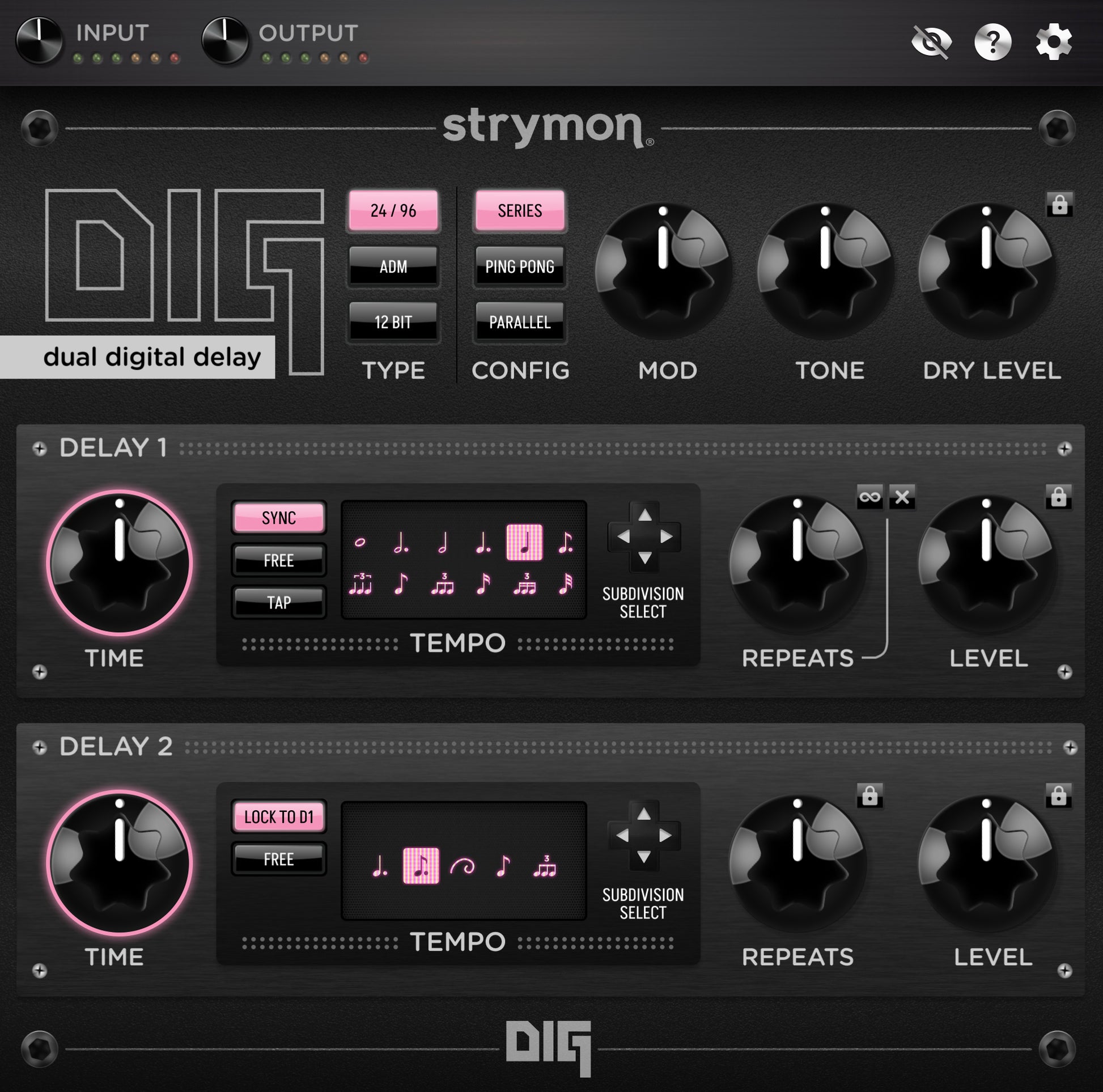

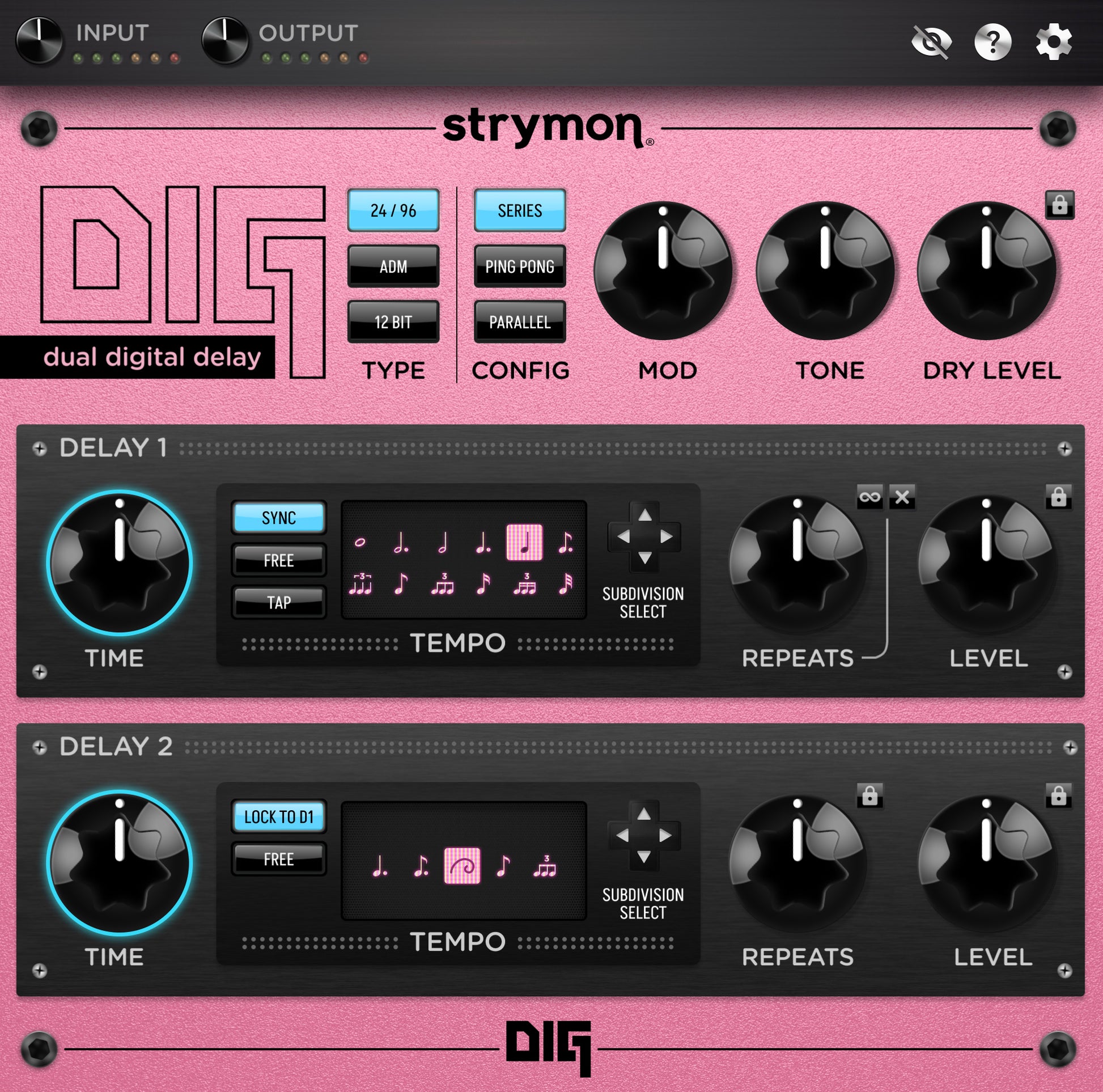

• Customizable plugin interface with selectable parameter value display modes, window sizes, and color schemes

• An included set of factory presets

Workflow

• AU (Mac) and AAX & VST3 (macOS and Windows) plugin formats for support with all major DAW host applications

• DAW host support for mono, mono-stereo, and stereo plugin instances and standard sample rates from 44.1 kHz to 192 kHz, at 16-bit or 24-bit resolution

• 32-bit floating point processing

• Support for DAW host automation of plugin parameters
